Solar plan sets, back in 3 hours or less.
AI-drafted, NEC-checked and reviewed by a Ballast engineer.
- ≤ 3 hoursTurnaround
- Preview firstBefore you pay
- No accountOrder online

From site survey to finished plan set in four steps
The plan set generator walks you through the job, one question at a time. No account, no app to download.
Tell us about the job
Address, electrical service and how the system connects. Pick your module, inverter, battery and racking, or upload the datasheet for anything not listed.
Upload the site survey
Panel label, meter, equipment wall and roof photos, or the whole survey as a zip, up to 50 photos. Add the roof faces and panel counts.
See the preview, then pay
The generator drafts every sheet. You see watermarked previews first, then pay by card.
Engineer reviews, you download
A Ballast engineer checks the set and emails you if anything needs an answer. Your plan set is ready to download in 3 hours or less.

Smart features that do the drafting for you
AI reads what you send. The generator turns it into CAD-quality sheets. An engineer signs off.
Elevation views, drawn for the job
Building elevations and equipment elevations come from your photos and answers: wall heights, the equipment zone, battery and inverter spacing, clearances and the conduit runs between them. The generator lays out the modules, numbers the strings and draws the one-line to match. Nothing is retyped.


Electrical calculations, with the code article cited
String voltage with cold-temperature correction, conductor and breaker sizing, the 120% rule or the stand-alone supply check, battery and ESS checks and voltage drop. Every row shows its NEC article and a pass or verify result, so the reviewer can check it at a glance.

Smart features
- AI-assisted intakePanel ratings, meter and equipment details are read from your survey photos and checked against what you entered.
- Equipment library that learnsUpload a datasheet once. The specs and sheets are saved, and the next job with that equipment loads them automatically.
- Preview before you paySee watermarked sheets of your actual job before checkout. The full set unlocks after payment and engineer review.
- A real engineer on every setEvery plan set is reviewed by a Ballast engineer. Questions come by email, or WhatsApp if you allow it.
Drafting in every set

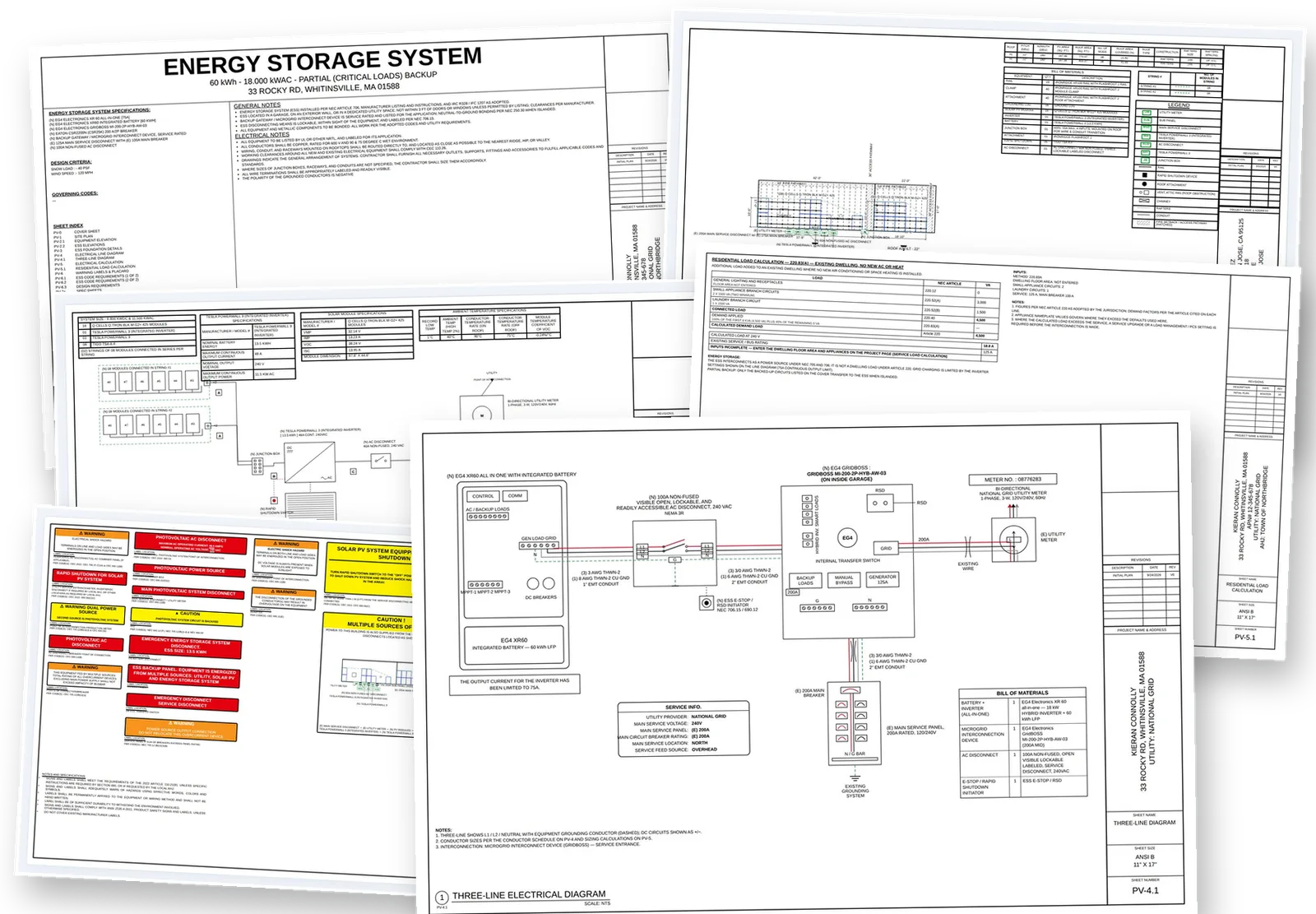

- Cover and site planSystem summary, general notes, design criteria, sheet index and a site plan with the array and equipment.

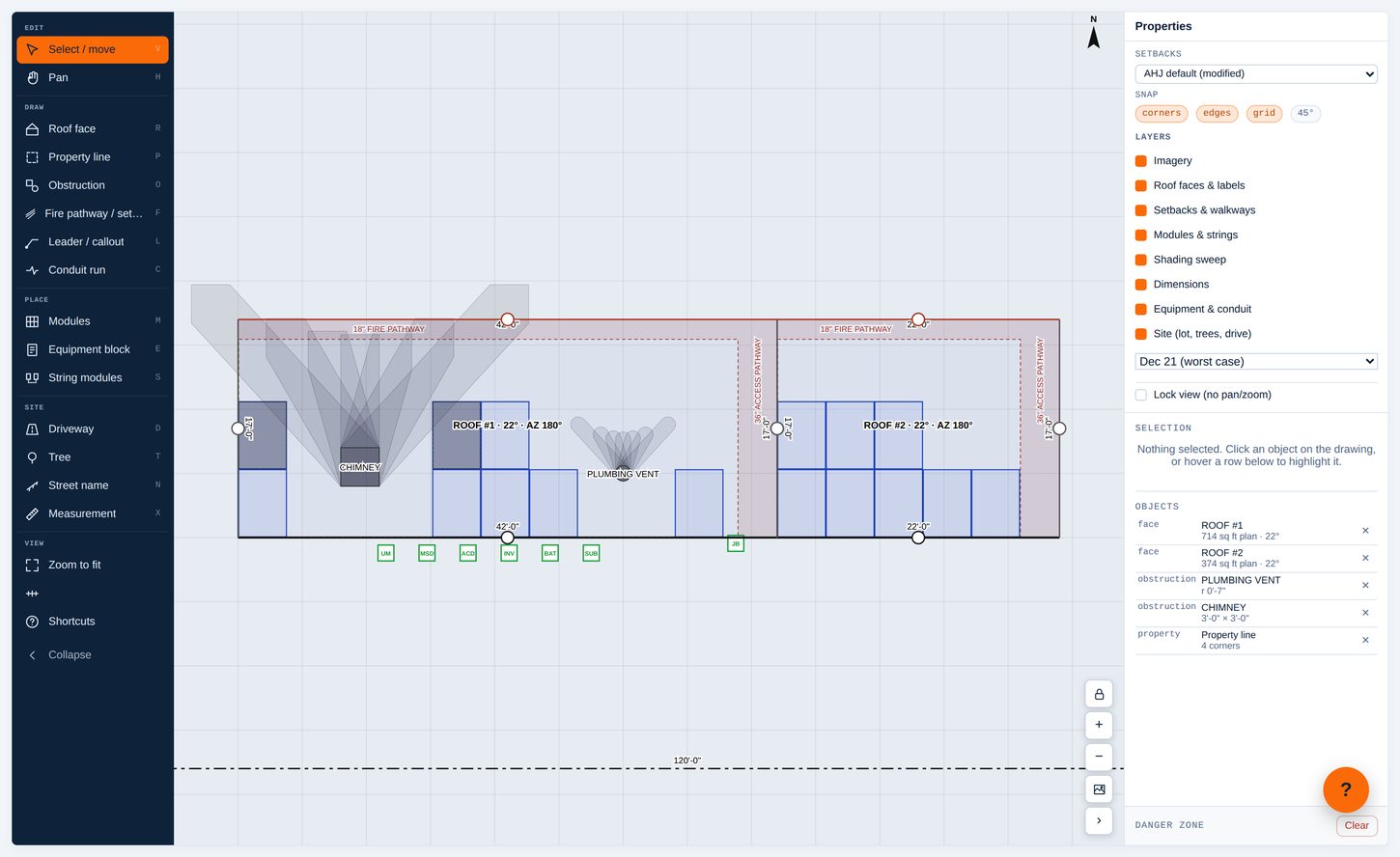

- Roof plan and attachmentsModule layout per roof face, setbacks and pathways, rafters, attachment spacing and string numbering.
- Equipment elevationThe equipment wall drawn with working clearances, mounting heights and every component in place.

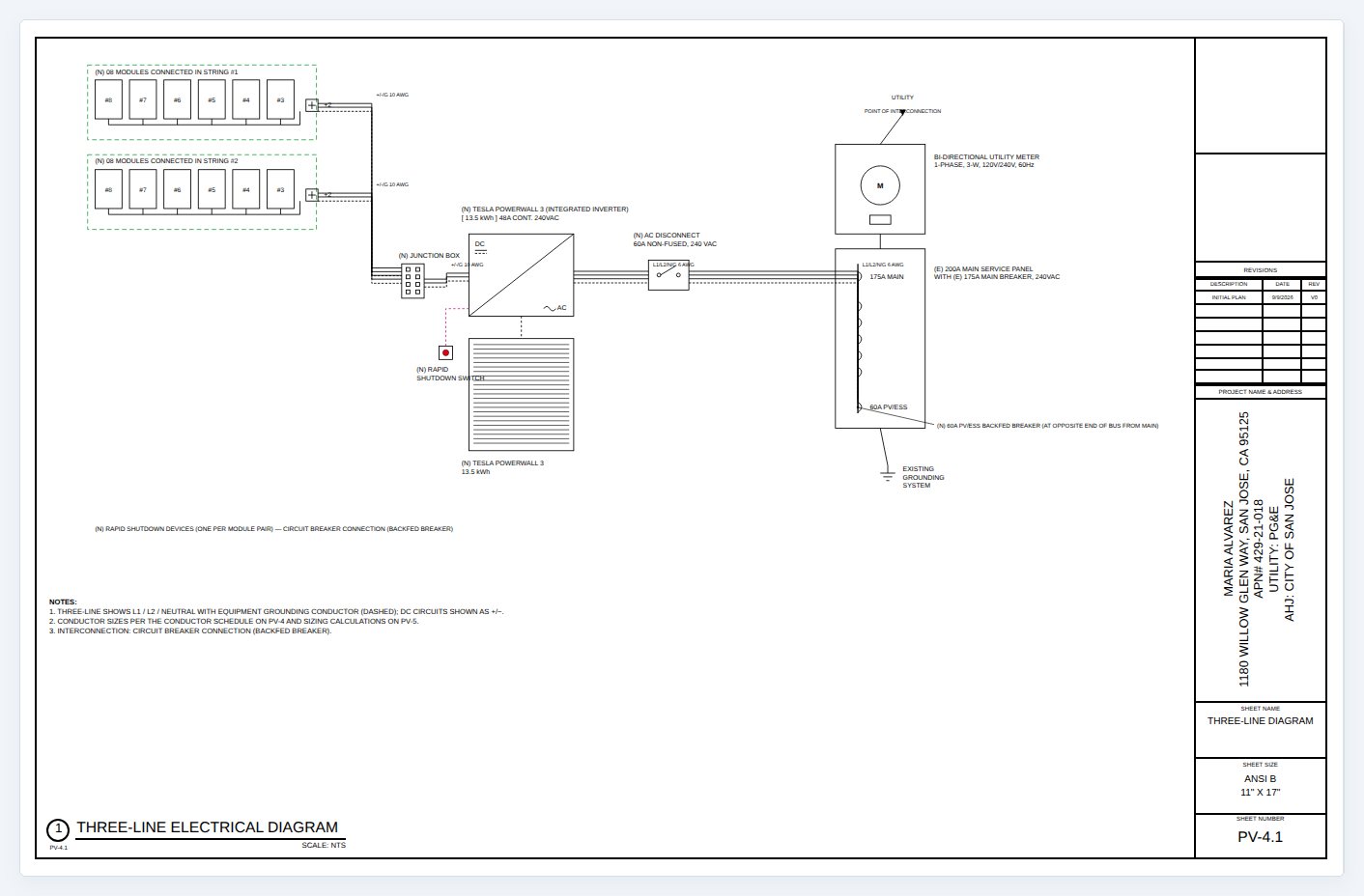

- One-line and calculationsSingle-line diagram, conductor and conduit schedule, OCPD sizing and the calculations behind them.
- Labels and placardsEvery required label with its location and wording, ready for the field.
- DatasheetsManufacturer spec sheets for each piece of equipment bound into the set.
Compliance checked before an engineer sees it
The generator runs the code checks on every set, cites the article, and holds anything that fails for the engineer.
- Maximum system voltageString voltage at the record low temperature for the site, NEC 690.7.
- Conductor and OCPD sizingContinuous-current factors, ampacity, temperature and conduit-fill derating, NEC 690.8 and 310.
- Point of connectionThe 120% busbar rule, load-side and supply-side connections, NEC 705.12.
- Conduit fill and voltage dropFill checked per raceway, voltage drop kept within limits on every run.
- Rapid shutdown and labelsModule-level rapid shutdown, NEC 690.12, with the labels required by 690, 705 and 706.
- Fire setbacks and pathwaysRidge and roof-access setbacks drawn on the roof plan, IFC / IRC R324.
- Drafting QAEvery sheet is scanned for overlapping text and missing callouts before it reaches review.
- Permit and utility requirementsWith the $10 add-on, your jurisdiction's and utility's requirements are researched and applied, and an engineer walks through complicated jobs with you.
Off-grid and DIY solar plans
Building your own system? We draw the permit plans for off-grid and DIY solar too.
- Off-grid roof and ground-mount systems, with or without a generator
- Tell us your loads, battery, inverter and charging source, or write in any equipment you use
- Same complete plan set, NEC checks and Ballast engineer review as every order
- Dedicated Ballast engineer help and free revisions
Simple pricing
Pay per plan set, after you see the preview. No account, no subscription.
+ $10 for permit and utility requirements and engineering review
Start your plan set- Complete permit plan set, every sheet, ANSI B 11″ × 17″
- NEC checks with the article cited
- Reviewed by a Ballast engineer
- Back in 3 hours or less
- Preview before you pay; secure card checkout
Residential rooftop solar and battery storage. Commercial jobs: email admin@ballastsolarplans.com.
Engineer stamping is not provided by Ballast at this time. Interested in being a stamping partner? Partner with us.
Stamping partners
Engineer stamping is not provided by Ballast at this time
Are you a licensed engineer interested in stamping Ballast plan sets? Partner with us and send us an email.
Your next plan set, back in 3 hours or less.
Order it now. See the preview before you pay.
